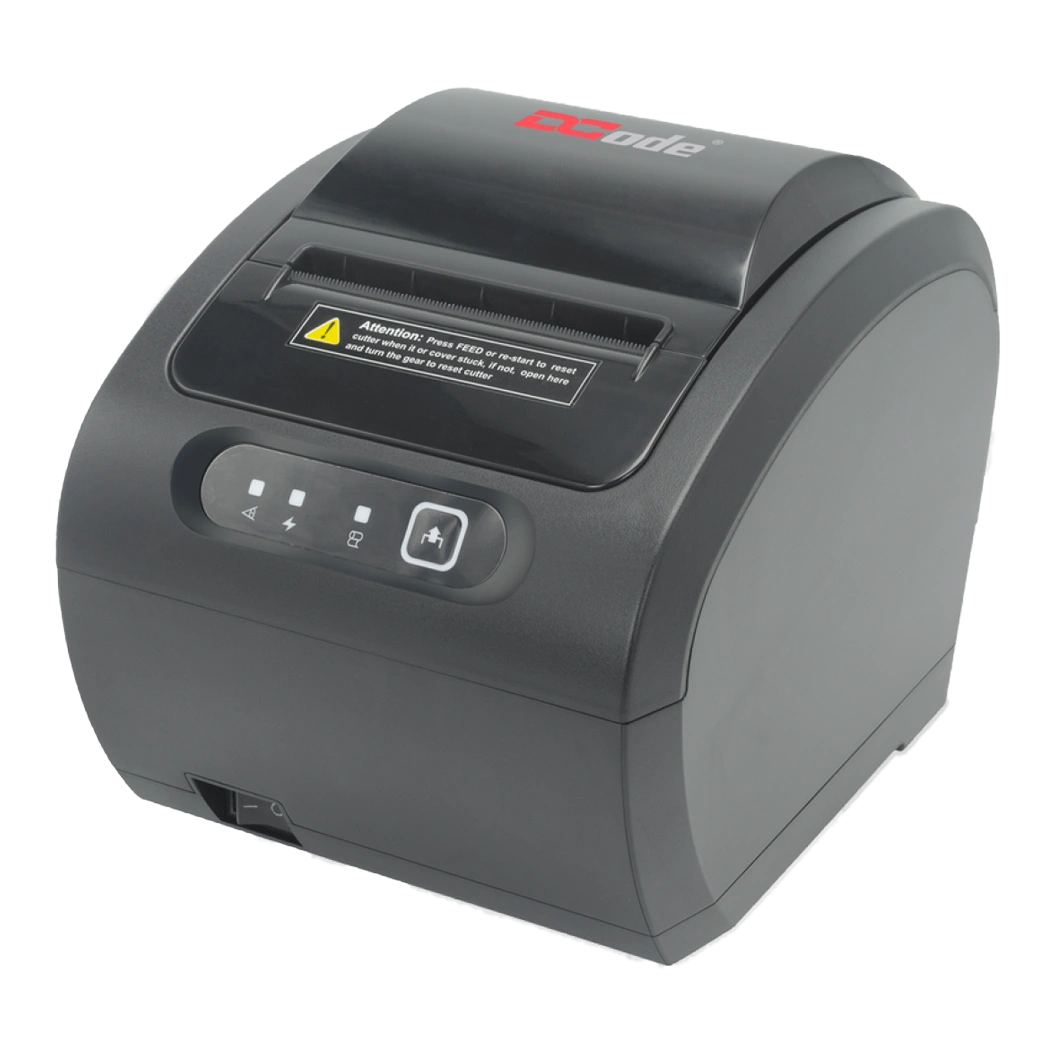

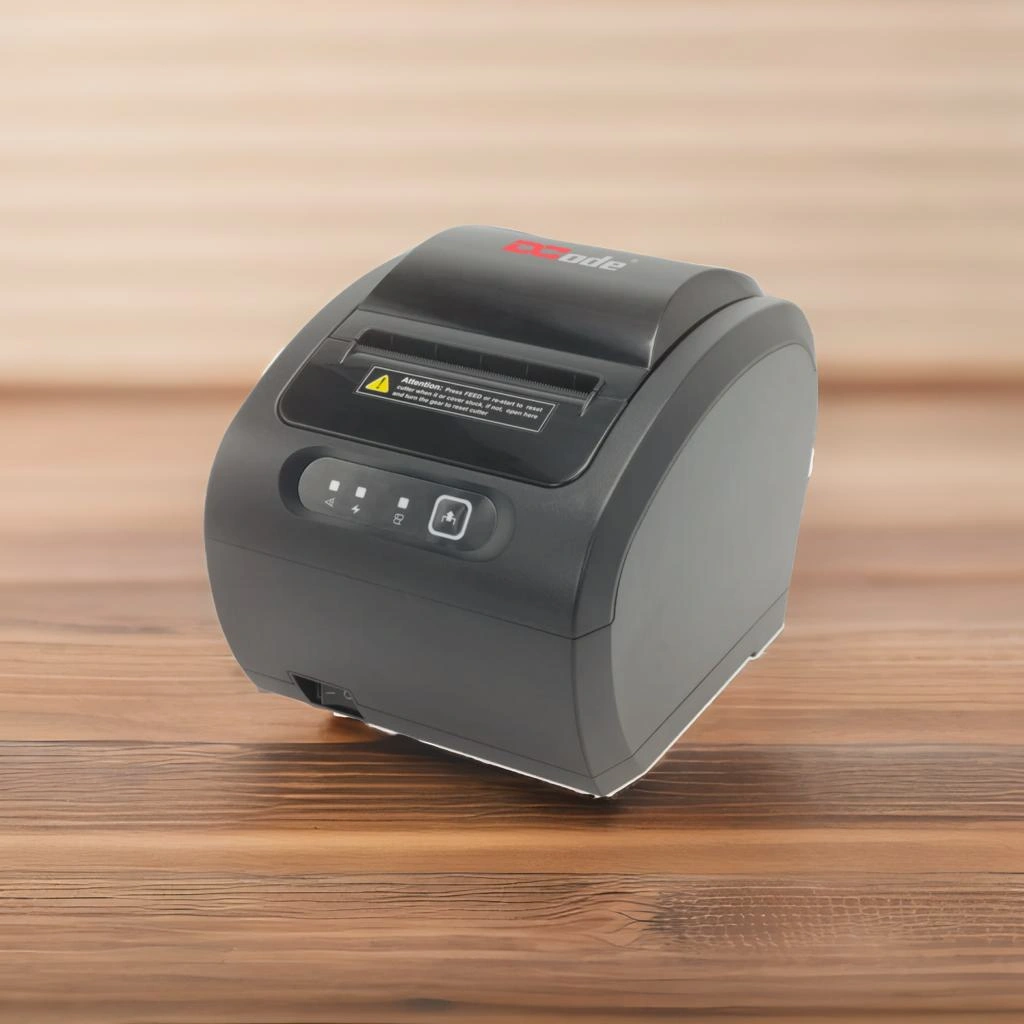

Name: DC3R1 – Thermal Receipt Printer
SKU: 1273
Availability: InStock

Description

Printing Method	Direct Thermal
Paper Width	79.5 ± 0.5mm
Print Width	72mm
Column Capacity	576 dots / line
Printing Speed	200 mm/s
Interface	USB + LAN
Line Spacing	3.75mm (Adjustable by Command)
Column Number	80mm paper: Font A – 48 columns / Font B – 64 columns
Character Size	ANK, Font A: 1.5×3.0mm \| Font B: 1.1×2.1mm
Auto Cutter	Available
Barcode Character	1D Barcode: UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
2D Barcode	QR CODE / PDF 417
Input Buffer	96 Kbytes
NV Flash	256 Kbytes
Power Adaptor	AC 100 ~ 240V, 50 ~ 60Hz
Printer Input	DC 24V/2.5A
Cash Drawer	DC 24V/1A
Weight	1.01 KG
Dimensions	192 x 145.2 x 146.3 mm
Environmental	Work: 0° ~ 45°C (Humidity: 10 ~ 80%), Storage: -10° ~ 60°C (Humidity: 10 ~ 90%)
Software	Emulation: ESC/POS
Driver	Windows / JPOS / Linux / OPOS / Android / Mac
Utility	Windows & Linux Test Utility
SDK	iOS, Android, Windows
