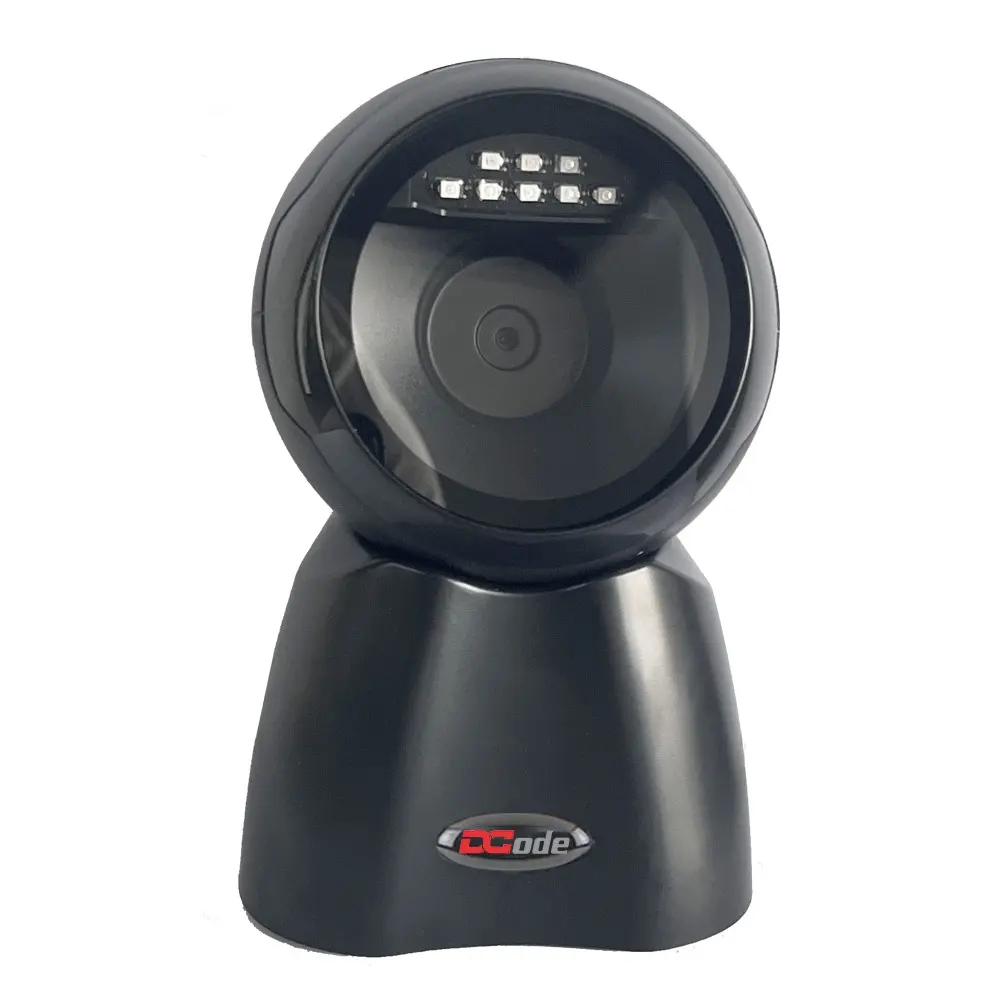

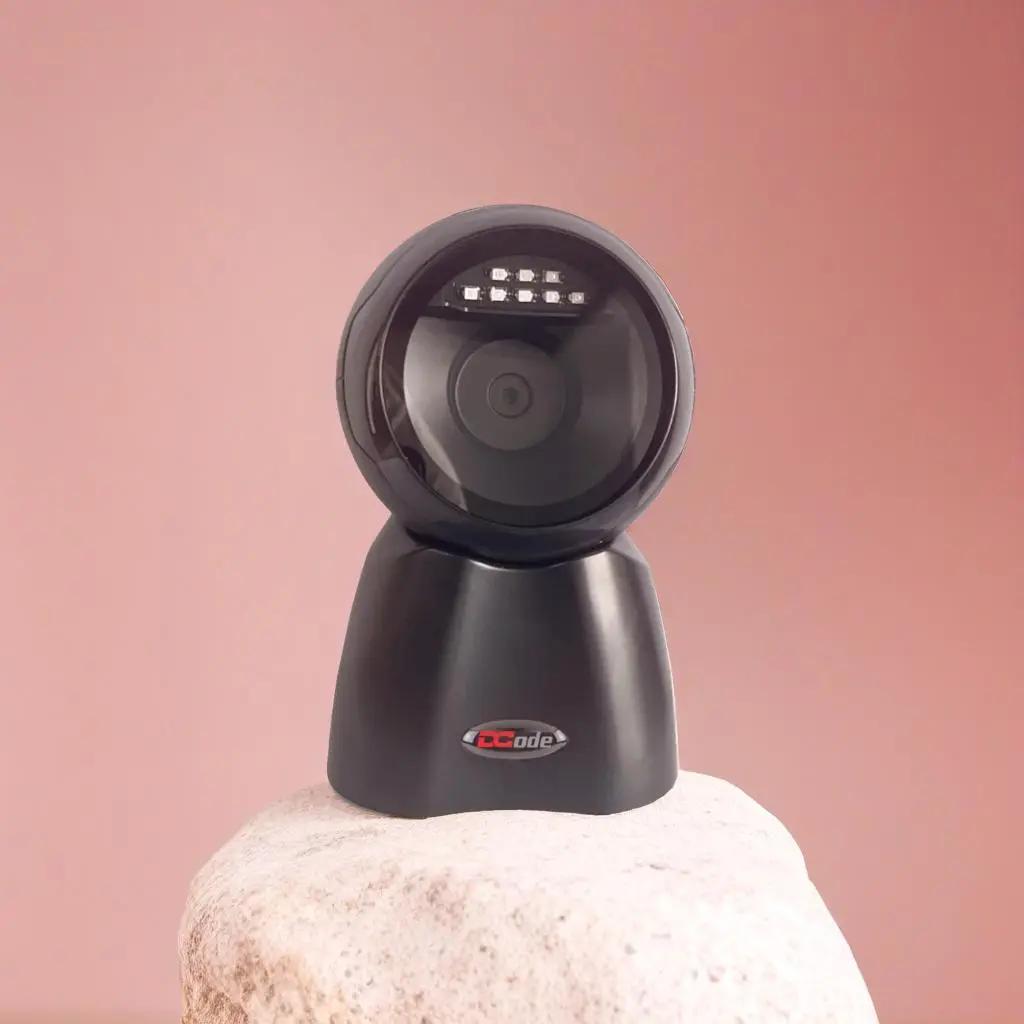

Name: DC7132- 2D Presentation Scanner
SKU: 1287
Availability: InStock

Description

Optical Resolution	640 x 480
Lighting Source	Red LED
Mils	amil
Scanning Speed	500 per second
Scan Angle	Roll 360° / Pitch ±65° / Yaw ±60°
Print Contrast	20%
CPU	ARM 32 bit Cortex
Barcode Type	Paper, thin film, mobile phone, flat screen, etc.
Error Rate	<1/2,000,000
Prompt Mode	Buzzer, LED
Decoding Capability	10: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 Databar OmniDirectional, GS1 DataBar Limited, GST DataBar Expanded, China Post (Hongkong 2 of 5), Korea Post 2D: PDF417, QR Code, Micro PDF417, Austrian Post, Canada Post, Japan Post MaxiCode, Codablock, Aztec, Dutch Post, DataMatrix, etc.
Electric Voltage	5V DC
Current	Work: 456mA, Standby: 220mA, Starting: 470mA
Ambient Light Immunity	0-100,000 Lux
Dimensions	104mm x 96.3mm x 166mm
Weight	300g
Working Temperature	-0°C ~ 50°C
Storage Temperature	-30°C ~ 70°C
Humidity	5% to 95% Relative Humidity, Non Condensing
